The infinite loop

Version 1.0 - Prototype

The Version 1 of this contraption is made of machined parts and PVC pipe for framing. Also the motor is connected to the hub via rubber belt

Quam lorem ipsum

Aenean ornare velit lacus, ac varius enim lorem ullamcorper dolore. Proin aliquam facilisis ante interdum. Sed nulla amet lorem feugiat tempus aliquam.

Sed magna finibus

Aenean ornare velit lacus, ac varius enim lorem ullamcorper dolore. Proin aliquam facilisis ante interdum. Sed nulla amet lorem feugiat tempus aliquam.

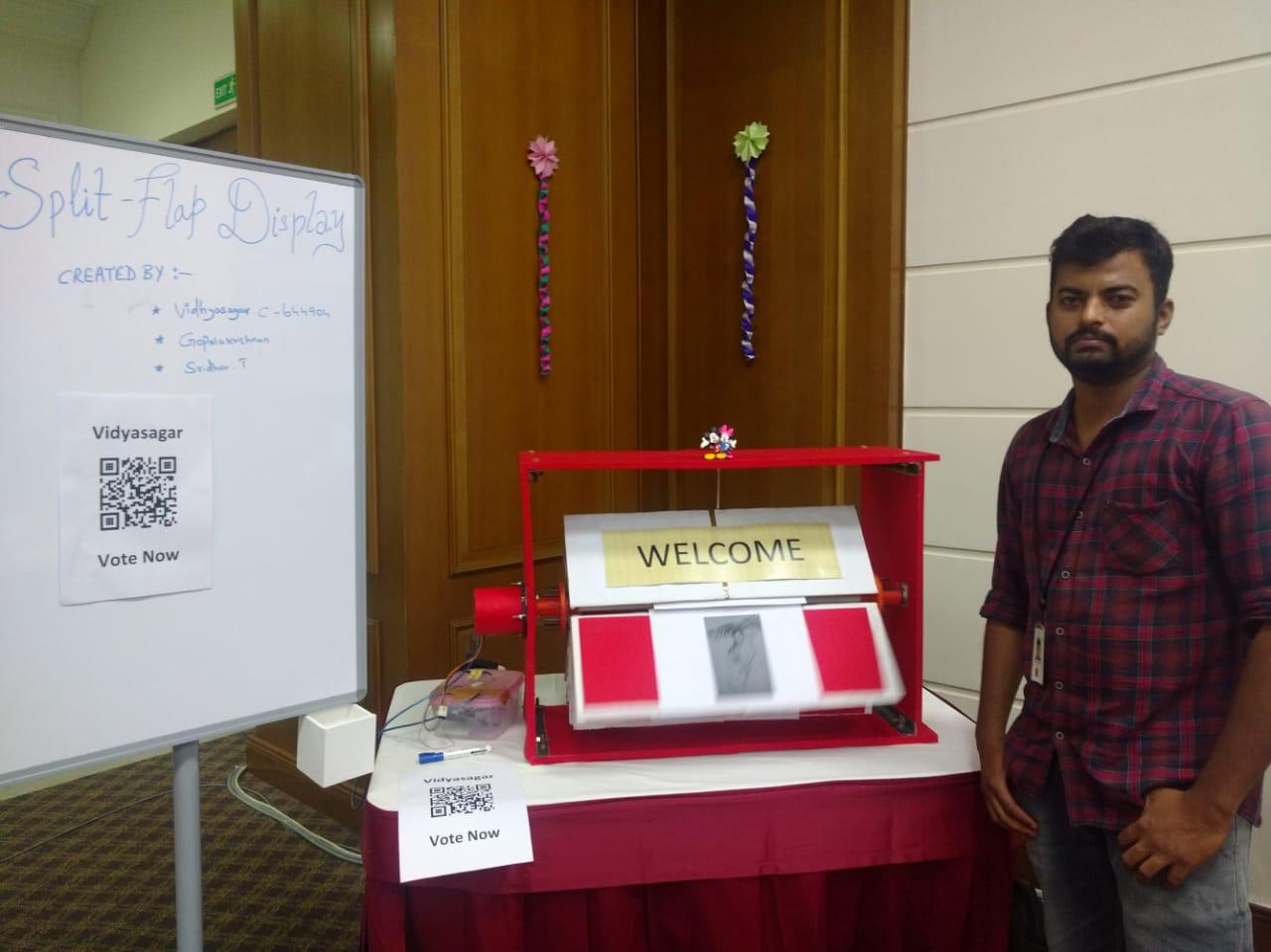

The Winning model

Version 2.0 - Working Model

  • It is a contarption made of wooden frame with card board slides controlled by a Nema-23 stepper motor.
  • The motor is programmed to loop and stop at regular intervals matching the slides.
  • The slides are mounted on a rotating hub which resembles a squirrel cage.
  • The hub end supports are 3d printed using Anet A5 printer in PLA.
  • The fibre glass sticks taken out of broken umbrellas (Yes, Infosys Umbrellas) are woven through the card board slides and mounted on the hub.

Winning Moments!!!
